Optimum Design
Optimum Design

Core of The Innovative Design

Focus of our design is good performance. Customer first, so we will take the formation, area, and well depth in consideration. In designing, designers consult with users to get more information to learn users needs. In the meantime, we will carefully compare our designs to provide users a more suitable design.


Inspection Standards

Whether a design is successful or not depends on the performance is well or not. Usually, users evaluate a product according to the performance in application. The main evaluation standards as below:

(1)Decrease the production cost or the drilling cost.

(2)Performance better.

(3)Meet customer’s drilling requests.


Key Points of Design

Innovation and design are based on customers’ demands. Designers concern on formation, drilling rate, well depth, cost reduction of drilling, drilling speed increasing to optimize designs.

Optimum Design.jpg


Good Quality Material of Body



Good Quality Material of Body.jpg

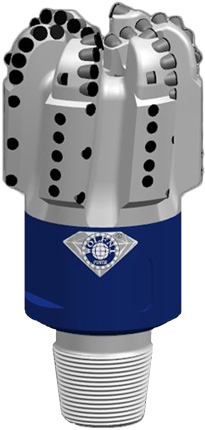

Choosing good quality steel to make drill bit body.

To improve the aggressivity and abrasive resistance, we weld wear resistance material on bit surface. Also we use 3D-integrated software to design, and adopt designs of spiral cutter displace, long crown profile, long gauge spiral wings, force balance cutting structure, reasonable cutters placement.

Using CFD and digital simulation technology to design wider flow area make PDC bits have good chip removal rate and bit balling resistance.

Dual-row Cutters



Dual-row Cutters.jpg

The back row cutters help to cut rocks, to protect matrix, to prolong lifetime and to deduct cost of PDC bit.


Analysis-Example of Choice of Drill Bits



Analysis-Example of Choice of Drill Bits.jpg

In drilling, there are many complicated or uncertain factors. After safety evaluation, we can avoid many accidents, reduce drilling cost, improve management level of drilling.

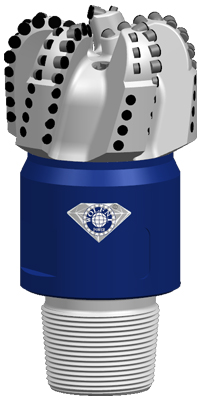

Firstly, features of each bit will be designed with hardness of formation and well depth. We can add vice-cutters to PDC bits to improve the stability and wear resistance of bits. In hard and small rocks formation, we can choice bits as right picture.



After many tests on site, we extended the application field of PDC bits in Shengli Oilfield, and achieved success, forming extension model of application of PDC bits.



Test Results: which formations can not adopt PDC bits are high cementation gristone, conglomerate, density and hard mud rock, high plasticity mudstone, siltite, high shale content of carbonate formation.


Spiral Wings



Spiral Wings.jpg

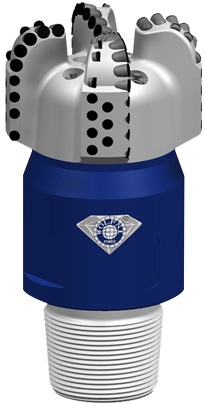

Increase contact area between PDC bit and well wall to keep drilling stably, to decrease waste of drilling tools.


PDC Bit Directional Drilling



PDC Bit Directional Drilling.jpg

Recent years, directional drilling technology gets mature. Well drilling demand is increased.



The cut rock type of PDC bits lead to high reaction torque in sliding directional drilling, lead to interruptions and low ROP in deflecting.



When we use tricone bits for directional drilling, the ROP is slow and the bit lifespan is short. These restrict the drilling rate, increase the cost, request better drilling technology.



In view of above questions, our company, Wolfni Technology, have researched and developed a kind of special PDC drill bit for directional drilling. Adopting compact structure design and bottom hole flow field simulation technology, the bits have reduced the reaction torque in cutting, have decreased the unstability. So the bit has good directional ability, deflecting capacity in drilling. The technology of this type of PDC bits is advanced all over the world.



Field Test



Field Test.jpg

Jiangsu Oilfield(water area) has bad surface condition, complicated subsurface structure.  Main rocks are gritstone and mudstone. Bit balling easily in high dispersion rocks, which restrict the performance of conventional PDC bits.

To optimize drilling in Jiangsu Oilfield, we analyze the drill ability and hardness of oilfield with drilling core and logging information. The results show that the drilli ability is grade 1 to 6, hardness is 169-733 Mpa, formation is soft to medium.



Adopting design with 4 wings, deep inner cone, low density cutters placement, using CFD to optimize hydraulic structure of PDC bits, we designed out a PDC bit 9 1/2’’WS416DR with good effective.

From application in site, the ROP and drilling depth was increased 16% at least. This kind of PDC bit solved the bit balling and low ROP problem.


Data Transform Technology(CAD-CAM integration)
1.Cutter placement with 3D-software.jpg2.Simulation analysis of flow field well bottom.jpg3.Computer simulation processing.jpg4.Reverse detection technology.jpg

1.Cutter placement with

3D-software

2.Simulation analysis of

flow field well bottom

3.Computer simulation

processing

4.Reverse detection

technology

5.Reverse detection technology.jpg6.Digital display sintering furnace.jpg7.CNC machining for thread.jpg

8.Process steel body of PDC bit.jpg

5.Reverse detection

technology

6.Digital display sintering

furnace

7.CNC machining for

thread

8.Process steel body of

PDC bit
