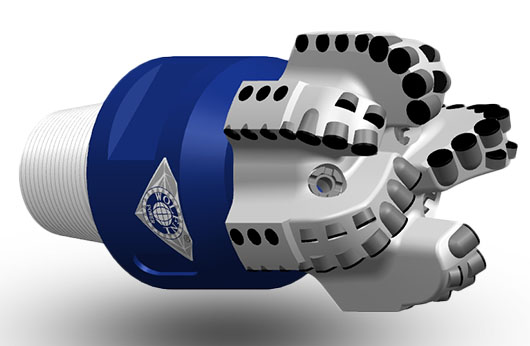

PDC drill bit steel body
8 1/8″WS519D(206.4mm)
IADC:S323
ID:WFN206S19501A
Design Specifications
Blade Qty 5
Total Cutters 53
Primary Cutter Size 19.05mm
Assistant Cutter Size 15.88mm
Gauge Cutter Size 13.44mm
anti-quake ball size Non
Nozzle Qty 5
Crown length 139mm
Gauge length 59.5mm
Connetion Size 4 1/2REG
Make-up Torque 16.3―21.7kN·m
Assembly groove wID:th 145mm
Bit Weight 44.4kg
Operating Parameters
Rotary speed 60-280RPM
Flow rate 28-40L/S
Bit Weight on bit 20-100KN

Adopting CFD emulational technology to calculate to optimize PDC bit, then reduce possibility of heavy breaking and wearing of bit.


Managment System Certification

ISO9001

3-3.pngCertificate Search
Name:ISO9001
Reference:00112Q226862R0S/5100
Issued By:CQC
Validity Period:2012-03-27 ~ 2016-02-26
Range:Design and manufacture of PDC drill bit


Product Certification

API

3-3.pngCertificate Search

Name:API
Reference:7-1-1077
Issued By:American Petroleum Institute
Validity Period:2014-03-19 ~ 2017-03-19
Range:PDC Bits




Personalized design technology


Cutter placement with 3D-softwareSimulation analysis of flow field well bottomComputer simulation processingReverse detection technology

1.Cutter placement with

3D-software.

2.Simulation analysis

of flow field well bottom.

3.Computer simulation

processing.

4.Reverse detection

technology.

Reverse detection technologyAnalog processing and testingOptimization of the angle of the cutting teethThree-dimensional model Stress Analysis

5.Reverse detection

technology.

6.Analog processing

and testing

7.Optimization of the

angle of the cutting teeth

8.Three-dimensional

model Stress Analysis

Bottomhole flow field vectorNozzle velocity vector distributionNozzle Flow ChartWolfni Engineer

9.Bottomhole flow

field vector

10.Nozzle velocity

vector distribution

11.Nozzle Flow

Chart

12.Wolfni Engineer





Bit Connection Size And Parameter

Bit Connection Size And Parameter

Bit Size

Connection Size

Make-up Torque

O.D. of Connection

I.D. of Connection

3 3/4”~4 1/2”

2 3/8”REG

2.40-4.12kN.m

3 1/8”

1”

4 5/8”~5”

2 7/8”REG

4.10-6.20kN.m

4 1/8”

1 1/4”

5 1/8”~7 3/8”

3 1/2”REG

6.90-10.23kN.m

4 3/4”

1 1/2”

7 13/32”~9 3/8”

4 1/2”REG

16.63-23.71kN.m

6 3/4”

1 3/4”

9 13/32”~14 1/2”

6 5/8”REG

49.56-51.43kN.m

8”

3”

14 9/16”~18 1/2”

7 5/8”REG

64.52-81.35kN.m

9 3/4”

3”

Note:Orient can design and manufacture any types and sizes of PDC bits according to customer requirements.





















1-1.pngReturn PDC steel body series

2-2.pngReturn Leading Products


Download PDF :
8 1/8″WS519D(206.4mm)

Design character:

■Medium parabolic profiles PDC bit bounce lateral smally, make wall of well smoothly. This design suit for motor / rotary drilling, for high abrasive formation.

■ Adopting CFD emulational technology to calculate to optimize PDC bit, then reduce possibility of heavy breaking and wearing of bit.

■ Dual-row cutters.The back row cutters help to cut rocks, to protect matrix, to prolong lifetime and to deduct cost of PDC bit.

■Suit for well drilling in low compressive strength, even texture soft-medium rock formation. Such as wake shale, density marlstone, strong batt, wake sandstone, limestone, and soft gravel, etc.
