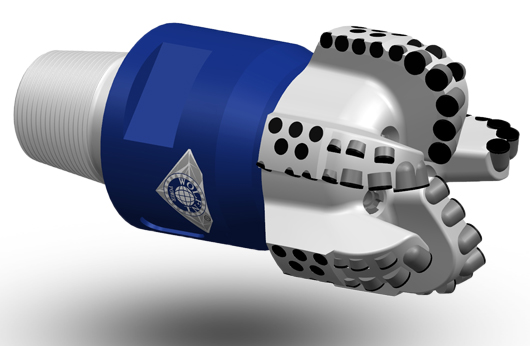

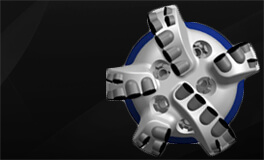

PDC drill bit steel body
8 1/2″WS519D(215.9mm)
IADC:S423
ID:WFN216S19503I
Design Specifications
Blade Qty 5
Total Cutters 56
Primary Cutter Size 19.05mm
Assistant Cutter Size 16mm
Gauge Cutter Size 13.44mm
anti-quake ball size Non
Nozzle Qty 5
Crown length 140.7mm
Gauge length 58.3mm
Connetion Size 4 1/2REG
Make-up Torque 16.63―21.7kN.m
Assembly groove wID:th 148mm
Bit Weight 48kg
Operating Parameters
Rotary speed 60-260RPM
Flow rate 28-40L/S
Weigh on bit 20-100KN

pdc_drill_bit_8_1_2in_IADCS423(215.90mm)_wolfni


Managment System Certification

ISO9001

3-3.pngCertificate Search
Name:            ISO9001
Reference:            00112Q226862R0S/5100
Issued By:            CQC
Validity Period:            2012-03-27 ~ 2016-02-26
Range:            Design and manufacture of PDC drill bit


Product Certification

API

3-3.pngCertificate Search

Name:            API
Reference:            7-1-1077
Issued By:            American Petroleum Institute
Validity Period:            2014-03-19 ~ 2017-03-19
Range:            PDC Bits




Personalized design technology


Cutter placement with 3D-software            Simulation analysis of flow field well bottom            Computer simulation processing            Reverse detection technology

1.Cutter placement with

3D-software.

2.Simulation analysis

of flow field well bottom.

3.Computer simulation

processing.

4.Reverse detection

technology.

Reverse detection technology            Analog processing and testing            Optimization of the angle of the cutting teeth            Three-dimensional model Stress Analysis

5.Reverse detection

technology.

6.Analog processing

and testing

7.Optimization of the

angle of the cutting teeth

8.Three-dimensional

model Stress Analysis

Bottomhole flow field vector            Nozzle velocity vector distribution            Nozzle Flow Chart            Wolfni Engineer

9.Bottomhole flow

field vector

10.Nozzle velocity

vector distribution

11.Nozzle Flow

Chart

12.Wolfni Engineer





Bit Connection Size And Parameter

Bit Connection Size And Parameter

Bit Size

Connection Size

Make-up Torque

O.D. of Connection

I.D. of Connection

3 3/4”~4 1/2”

2 3/8”REG

2.40-4.12kN.m

3 1/8”

1”

4 5/8”~5”

2 7/8”REG

4.10-6.20kN.m

4 1/8”

1 1/4”

5 1/8”~7 3/8”

3 1/2”REG

6.90-10.23kN.m

4 3/4”

1 1/2”

7 13/32”~9 3/8”

4 1/2”REG

16.63-23.71kN.m

6 3/4”

1 3/4”

9 13/32”~14 1/2”

6 5/8”REG

49.56-51.43kN.m

8”

3”

14 9/16”~18 1/2”

7 5/8”REG

64.52-81.35kN.m

9 3/4”

3”

Note:Orient can design and manufacture any types and sizes of PDC bits according to customer requirements.





















1-1.pngReturn PDC steel body series

2-2.pngReturn Leading Products


Download PDF :
8 1/2″WS519D(215.9mm)

Design character:

■Dual-row cutters.The back row cutters help to cut rocks, to protect matrix, to prolong lifetime and to deduct cost of PDC bit.

■Special design of back-rake angles will decrease torque on bit, increase bit aggressiveness, improve efficiency of ROP.

■Long parabolic profiles PDC bit cut rock greatly, have faster ROP. This design suit for rotary drilling in soft and low abrasive formation.

■Suit for well drilling in low compressive strength, even texture medium rock formation. Such as wake shale, density marlstone, strong batt, wake sandstone, limestone, and soft gravel, etc.
