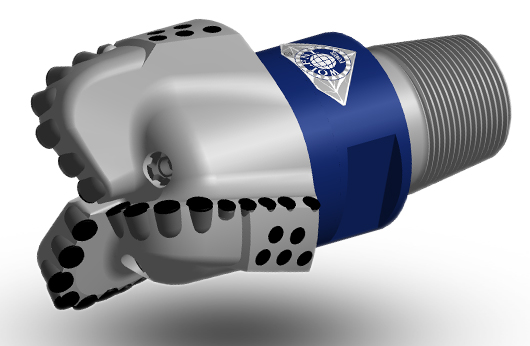

PDC drill bit steel body
8 1/2″WS319SG(215.9mm)
IADC:S223
ID:WFN216S19301A
Design Specifications
Blade Qty 3
Total Cutters 30
Primary Cutter Size 19.05mm
Assistant Cutter Size Non
Gauge Cutter Size 13.44mm
anti-quake ball size Non
Nozzle Qty 5
Crown length 155.8mm
Gauge length 62.9mm
Connetion Size 4 1/2REG
Make-up Torque 16.3―21.7kN·m
Assembly groove wID:th 145mm
Bit Weight 45.5kg
Operating Parameters
Rotary speed 60-260RPM
Flow rate 28-40L/S
Weigh on bit 20-100KN

pdc_drill_bit_8_1_2in_IADCS223(215.90mm)_wolfni


Managment System Certification

ISO9001

3-3.pngCertificate Search
Name:ISO9001
Reference:00112Q226862R0S/5100
Issued By:CQC
Validity Period:2012-03-27 ~ 2016-02-26
Range:Design and manufacture of PDC drill bit


Product Certification

API

3-3.pngCertificate Search

Name:API
Reference:7-1-1077
Issued By:American Petroleum Institute
Validity Period:2014-03-19 ~ 2017-03-19
Range:PDC Bits




Personalized design technology


Cutter placement with 3D-softwareSimulation analysis of flow field well bottomComputer simulation processingReverse detection technology

1.Cutter placement with

3D-software.

2.Simulation analysis

of flow field well bottom.

3.Computer simulation

processing.

4.Reverse detection

technology.

Reverse detection technologyAnalog processing and testingOptimization of the angle of the cutting teethThree-dimensional model Stress Analysis

5.Reverse detection

technology.

6.Analog processing

and testing

7.Optimization of the

angle of the cutting teeth

8.Three-dimensional

model Stress Analysis

Bottomhole flow field vectorNozzle velocity vector distributionNozzle Flow ChartWolfni Engineer

9.Bottomhole flow

field vector

10.Nozzle velocity

vector distribution

11.Nozzle Flow

Chart

12.Wolfni Engineer





Bit Connection Size And Parameter

Bit Connection Size And Parameter

Bit Size

Connection Size

Make-up Torque

O.D. of Connection

I.D. of Connection

3 3/4”~4 1/2”

2 3/8”REG

2.40-4.12kN.m

3 1/8”

1”

4 5/8”~5”

2 7/8”REG

4.10-6.20kN.m

4 1/8”

1 1/4”

5 1/8”~7 3/8”

3 1/2”REG

6.90-10.23kN.m

4 3/4”

1 1/2”

7 13/32”~9 3/8”

4 1/2”REG

16.63-23.71kN.m

6 3/4”

1 3/4”

9 13/32”~14 1/2”

6 5/8”REG

49.56-51.43kN.m

8”

3”

14 9/16”~18 1/2”

7 5/8”REG

64.52-81.35kN.m

9 3/4”

3”

Note:Orient can design and manufacture any types and sizes of PDC bits according to customer requirements.





















1-1.pngReturn PDC steel body series

2-2.pngReturn Leading Products


Download PDF :
8 1/2″WS319SG(215.9mm)

Design character:

■Spiral blades increase contact area between PDC bit and well wall to keep drilling stably, to prolong lifespan of PDC bits.

■These back redressings at the base of gauge avoid difficult of pulling PDC bits our of hole in unconsolidated formation, and trim wall of well.

■Adopting CFD emulational technology to calculate to optimize PDC bit, then reduce possibility of heavy breaking and wearing of bit.

■Suit for well drilling in low compressive strength, high drillability soft rock formation. Such as soft limestone, chalk, halite, gypsum, anthracite, brocken sandstone, and rocky soil,etc.
