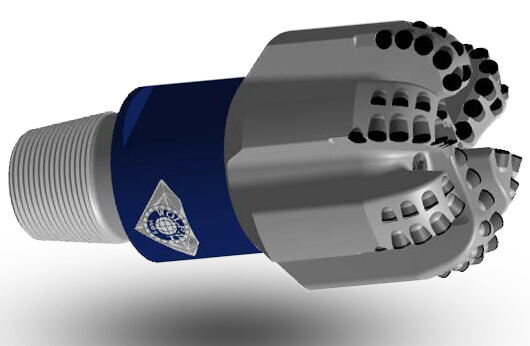

PDC drill bit matrix body
8 3/8in IADC:M423(212.73mm)
IADC:M423
ID:WFN213M16601A
Design Specifications
Blade Qty 6
Total Cutters 64
Primary Cutter Size 15.88mm
Assistant Cutter Size 13.44mm
Gauge Cutter Size 13.44mm
Anti-quake ball size NO
Nozzle Qty. 6
Crown length 164mm
Gauge length 103mm
Connetion Size 4 1/2REG
Make-up Torque 16.3―21.7kN·m
Assembly groove width 120mm
Bit Weight 85kg
Operating Parameters
Rotary speed 60-260RPM
Flow rate 28-40L/S
Weight on bit 20-100KN

PDC-drill-bit-matrix-body-8-3-8in-IADC-M423Note:Orient can design and manufacture any types and sizes of PDC bits according to customer requirements.


1-1.pngReturn PDC matrix body series

2-2.pngReturn Leading Products


Design character:

■Straight blade and short gauge: When pumpingpressure is low abrasive drilling mud can be dischargedquickly to avoid bit balling and losing efficacy of bit.

■Adopting CFD emulational technology to calculate to optimize PDC bit, then reduce possibility of heavy breaking and wearing of bit.

■Special design of back-rake angles will decrease torque on bit, increase bit aggressiveness, improve efficiency of ROP.

■Dual-row cutters.The back row cutters help to cut rocks, to protect matrix, to prolong lifetime and to deduct cost of PDC bit.
