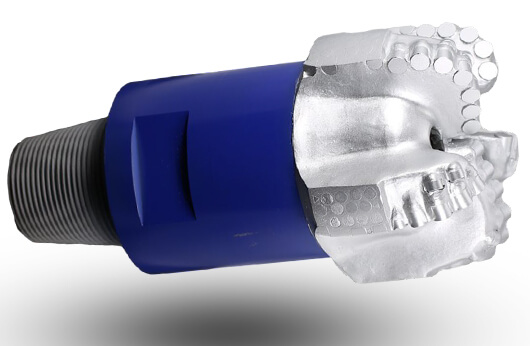

PDC drill bit matrix body
8 1/2in IADC:M423(215.9mm)
IADC:M423
ID:WFN216M16501A
Design Specifications
Blade Qty 5
Total Cutters 114
Primary Cutter Size 15.88mm
Assistant Cutter Size 13.44mm
Gauge Cutter Size 13.44mm
anti-quake ball size 10mm
Nozzle Qty 4+1
Crown length 130.3mm
Gauge length 54.9mm
Connetion Size 4 1/2REG
Make-up Torque 16.3-21.7kN.m
Assembly groove wID:th 145mm
Bit Weight 60.4kg
Operating Parameters
Rotary speed 60-260RPM
Flow rate 28-40L/S
Bit Weight on bit 20-100KN

PDC-drill-bit-matrix-body-8-1-2in-IADC-M423Note:Orient can design and manufacture any types and sizes of PDC bits according to customer requirements.



1-1.pngReturn PDC matrix body series

2-2.pngReturn Leading Products


Design character:

High toughness and wear-resistance matrix body is adopted to reduce affects for blade broken, to make PDC bit apply to drilling mud in varieties sand concentration, to prolong life time of PDC bit

The back row cutters help to cut rocks, to prolong lifetime and to deduct cost of PDC bit.

Wide flow design discharges drilling mud smoothly. This design is suit for fast drilling.

This design let pressure on PDC bit is balanced in drilling, and ensure flow area of each blade of bit is fit for high abrasive formations(such as gritstone, quartz, etc.). Drilling rate can be 40 to 50 m/h.
